Optionale Ergänzung: Beschichtungen u/o wechselseitige Abschrägung
Grobgezahnte Metallkreissägeblätter mit großem Spanraum zum Schlitzen bei größeren Schnitttiefen und Trennen von dickwandigen Rohren und Profilen.
Artikel anfragen durch Klick auf die entsprechende Zeile.

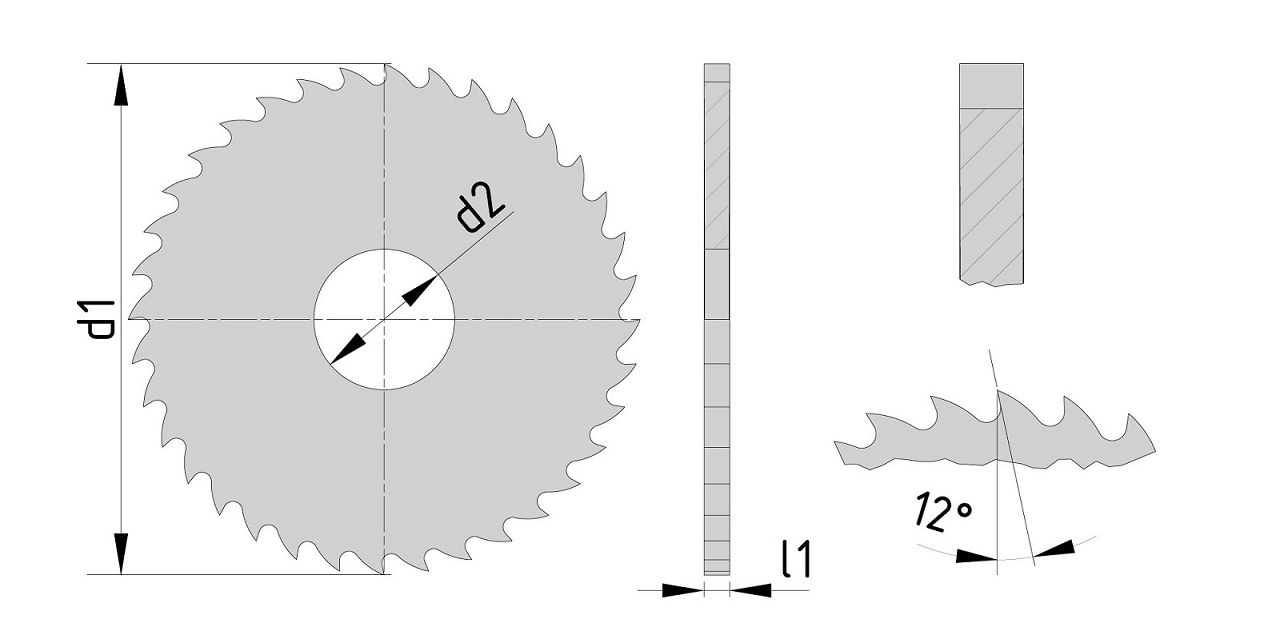

d1 mm |
l1 mm |
d2 mm |
Zähne | Naben-Ø mm |
ae max mm |
Kat.-Nr. | Art.-Nr. | |
50 | 0,5 | 13 | 50 | - | 11 | 1200 | 12000500500001 | |
50 | 0,6 | 13 | 50 | - | 11 | 1200 | 12000500600001 | |
50 | 0,8 | 13 | 40 | - | 11 | 1200 | 12000500800001 | |
50 | 1 | 13 | 40 | - | 11 | 1200 | 12000501000001 | |
50 | 1,2 | 13 | 40 | - | 11 | 1200 | 12000501200001 | |
50 | 1,6 | 13 | 32 | - | 11 | 1200 | 12000501600001 | |
50 | 2 | 13 | 32 | - | 11 | 1200 | 12000502000001 | |
50 | 2,5 | 13 | 32 | - | 11 | 1200 | 12000502500001 | |
50 | 3 | 13 | 24 | - | 11 | 1200 | 12000503000001 | |
50 | 4 | 13 | 24 | - | 11 | 1200 | 12000504000001 | |
50 | 5 | 13 | 24 | - | 11 | 1200 | 12000505000001 | |
63 | 0,5 | 16 | 62 | - | 14 | 1200 | 12000630500001 | |
63 | 0,6 | 16 | 50 | - | 14 | 1200 | 12000630600001 | |
63 | 0,8 | 16 | 50 | - | 14 | 1200 | 12000630800001 | |
63 | 1 | 16 | 50 | - | 14 | 1200 | 12000631000001 | |
63 | 1,2 | 16 | 40 | - | 14 | 1200 | 12000631200001 | |
63 | 1,6 | 16 | 40 | - | 14 | 1200 | 12000631600001 | |
63 | 2 | 16 | 40 | - | 14 | 1200 | 12000632000001 | |
63 | 2,5 | 16 | 32 | - | 14 | 1200 | 12000632500001 | |
63 | 3 | 16 | 32 | - | 14 | 1200 | 12000633000001 | |
63 | 4 | 16 | 32 | - | 14 | 1200 | 12000634000001 | |
63 | 5 | 16 | 24 | - | 14 | 1200 | 12000635000001 | |
80 | 0,5 | 22 | 62 | - | 20,5 | 1200 | 12000800500001 | |
80 | 0,6 | 22 | 62 | - | 20,5 | 1200 | 12000800600001 | |
80 | 0,8 | 22 | 62 | - | 20,5 | 1200 | 12000800800001 | |
80 | 1 | 22 | 50 | - | 20,5 | 1200 | 12000801000001 | |
80 | 1,2 | 22 | 50 | - | 20,5 | 1200 | 12000801200001 | |
80 | 1,6 | 22 | 50 | - | 20,5 | 1200 | 12000801600001 | |
80 | 2 | 22 | 40 | - | 20,5 | 1200 | 12000802000001 | |
80 | 2,5 | 22 | 40 | - | 20,5 | 1200 | 12000802500001 | |
80 | 3 | 22 | 40 | - | 20,5 | 1200 | 12000803000001 | |
80 | 4 | 22 | 32 | - | 20,5 | 1200 | 12000804000001 | |
80 | 5 | 22 | 32 | - | 20,5 | 1200 | 12000805000001 | |
100 | 0,5 | 22 | 78 | - | 28,5 | 1200 | 12001000500001 | |
100 | 0,6 | 22 | 78 | - | 28,5 | 1200 | 12001000600001 | |
100 | 0,8 | 22 | 62 | - | 28,5 | 1200 | 12001000800001 | |
100 | 1 | 22 | 62 | - | 28,5 | 1200 | 12001001000001 | |
100 | 1,2 | 22 | 62 | - | 28,5 | 1200 | 12001001200001 | |
100 | 1,6 | 22 | 50 | - | 28,5 | 1200 | 12001001600001 | |
100 | 2 | 22 | 50 | - | 28,5 | 1200 | 12001002000001 | |
100 | 2,5 | 22 | 50 | - | 28,5 | 1200 | 12001002500001 | |
100 | 3 | 22 | 40 | - | 28,5 | 1200 | 12001003000001 | |
100 | 4 | 22 | 40 | - | 28,5 | 1200 | 12001004000001 | |
100 | 5 | 22 | 40 | - | 28,5 | 1200 | 12001005000001 | |
125 | 0,6 | 22 | 78 | - | 41 | 1200 | 12001250600001 | |
125 | 0,8 | 22 | 78 | - | 41 | 1200 | 12001250800001 | |
125 | 1 | 22 | 78 | - | 41 | 1200 | 12001251000001 | |
125 | 1,2 | 22 | 62 | - | 41 | 1200 | 12001251200001 | |
125 | 1,6 | 22 | 62 | - | 41 | 1200 | 12001251600001 | |
125 | 2 | 22 | 62 | - | 41 | 1200 | 12001252000001 | |
125 | 2,5 | 22 | 50 | - | 41 | 1200 | 12001252500001 | |
125 | 3 | 22 | 50 | - | 41 | 1200 | 12001253000001 | |
125 | 4 | 22 | 50 | - | 41 | 1200 | 12001254000001 | |
125 | 5 | 22 | 40 | - | 41 | 1200 | 12001255000001 | |
160 | 1 | 32 | 80 | - | 47 | 1200 | 12001601000001 | |
160 | 1,2 | 32 | 80 | - | 47 | 1200 | 12001601200001 | |
160 | 1,6 | 32 | 80 | - | 47 | 1200 | 12001601600001 | |
160 | 2 | 32 | 62 | - | 47 | 1200 | 12001602000001 | |
160 | 2,5 | 32 | 62 | - | 47 | 1200 | 12001602500001 | |
160 | 3 | 32 | 62 | - | 47 | 1200 | 12001603000001 | |
160 | 4 | 32 | 50 | - | 47 | 1200 | 12001604000001 | |
200 | 1 | 32 | 100 | 63 | 67 | 1200 | 12002001000001 | |
200 | 1,2 | 32 | 100 | 63 | 67 | 1200 | 12002001200001 | |
200 | 1,6 | 32 | 78 | 63 | 67 | 1200 | 12002001600001 | |
200 | 2 | 32 | 78 | 63 | 67 | 1200 | 12002002000001 | |
200 | 2,5 | 32 | 78 | 63 | 67 | 1200 | 12002002500001 | |
200 | 3 | 32 | 62 | 63 | 67 | 1200 | 12002003000001 | |
250 | 1,6 | 32 | 98 | 63 | 92 | 1200 | 12002501600001 | |
250 | 2 | 32 | 98 | 63 | 92 | 1200 | 12002502000001 | |
250 | 2,5 | 32 | 78 | 63 | 92 | 1200 | 12002502500001 | |
250 | 3 | 32 | 78 | 63 | 92 | 1200 | 12002503000001 |
