Geradeverzahnte schmale Scheibenfräser für tiefe Schnitte in Bau-Werkzeugstahl und Guss mit hoher Maßhaltigkeit und Oberflächengüte.
Für Materialien bis zu einer Festigkeit von 1200 N/mm².
Artikel anfragen durch Klick auf die entsprechende Zeile.

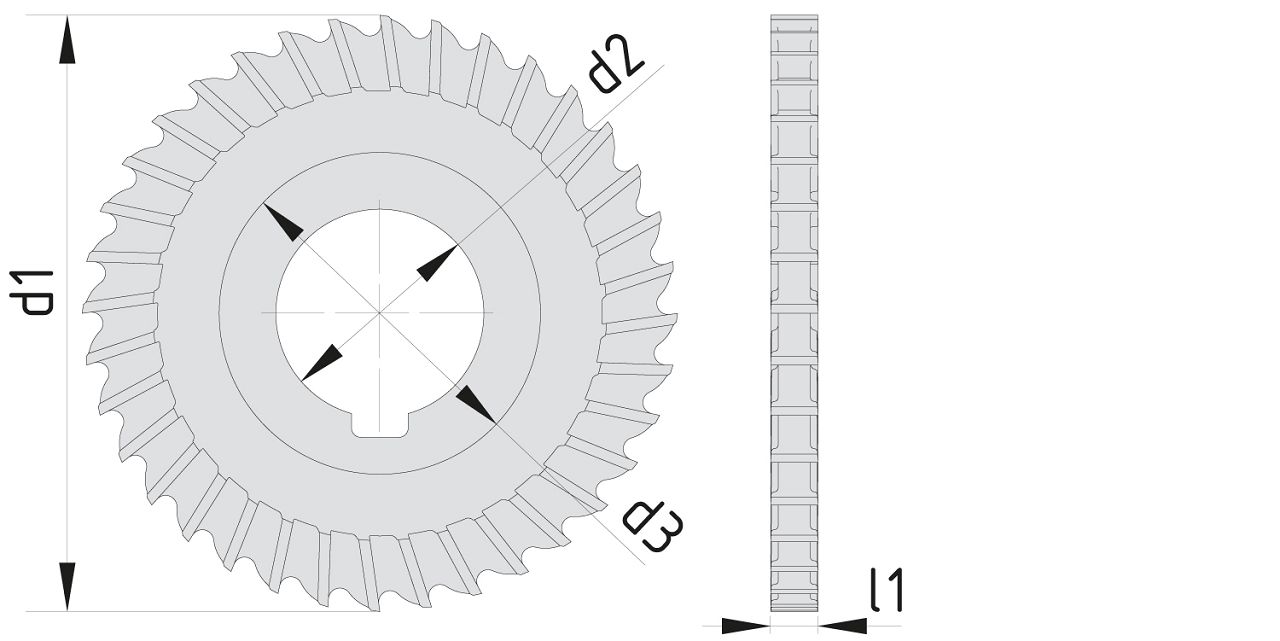

d1 mm |
l1 mm |
d2 mm |
Zähne | Naben-Ø mm |
ae max mm |
Kat.-Nr. | Art.-Nr. | |
63 | 1,6 | 22 | 32 | 34 | 13 | 2420 | 24200630160001 | |
63 | 2 | 22 | 32 | 34 | 3 | 2420 | 24200630200001 | |
63 | 2,5 | 22 | 32 | 34 | 13 | 2420 | 24200630250001 | |
63 | 3 | 22 | 32 | 34 | 13 | 2420 | 24200630300001 | |
63 | 4 | 22 | 32 | 34 | 13 | 2420 | 24200630400001 | |
63 | 5 | 22 | 32 | 34 | 13 | 2420 | 24200630500001 | |
63 | 6 | 22 | 32 | 34 | 13 | 2420 | 24200630600001 | |
80 | 1,6 | 27 | 36 | 42 | 17,5 | 2420 | 24200800160001 | |
80 | 2 | 27 | 36 | 42 | 17,5 | 2420 | 24200800200001 | |
80 | 2,5 | 27 | 36 | 42 | 17,5 | 2420 | 24200800250001 | |
80 | 3 | 27 | 36 | 42 | 17,5 | 2420 | 24200800300001 | |
80 | 4 | 27 | 36 | 42 | 17,5 | 2420 | 24200800400001 | |
80 | 5 | 27 | 36 | 42 | 17,5 | 2420 | 24200800500001 | |
80 | 6 | 27 | 36 | 42 | 17,5 | 2420 | 24200800600001 | |
100 | 1,6 | 32 | 40 | 48 | 24,5 | 2420 | 24201000160001 | |
100 | 2 | 32 | 40 | 48 | 24,5 | 2420 | 24201000200001 | |
100 | 2,5 | 32 | 40 | 48 | 24,5 | 2420 | 24201000250001 | |
100 | 3 | 32 | 40 | 48 | 24,5 | 2420 | 24201000300001 | |
100 | 4 | 32 | 40 | 48 | 24,5 | 2420 | 24201000400001 | |
100 | 5 | 32 | 40 | 48 | 24,5 | 2420 | 24201000500001 | |
100 | 6 | 32 | 40 | 48 | 24,5 | 2420 | 24201000600001 | |
100 | 8 | 32 | 32 | 48 | 24,5 | 2420 | 24201000800001 | |
125 | 1,6 | 32 | 44 | 48 | 37 | 2420 | 24201250160001 | |
125 | 2 | 32 | 44 | 48 | 37 | 2420 | 24201250200001 | |
125 | 2,5 | 32 | 44 | 48 | 37 | 2420 | 24201250250001 | |
125 | 3 | 32 | 44 | 48 | 37 | 2420 | 24201250300001 | |
125 | 4 | 32 | 44 | 48 | 37 | 2420 | 24201250400001 | |
125 | 5 | 32 | 44 | 48 | 37 | 2420 | 24201250500001 | |
125 | 6 | 32 | 44 | 48 | 37 | 2420 | 24201250600001 | |
125 | 8 | 32 | 36 | 48 | 37 | 2420 | 24201250800001 | |
125 | 10 | 32 | 36 | 48 | 37 | 2420 | 24201251000001 | |
160 | 2 | 40 | 52 | 65 | 48 | 2420 | 24201600200001 | |
160 | 2,5 | 40 | 52 | 65 | 48 | 2420 | 24201600250001 | |
160 | 3 | 40 | 52 | 65 | 48 | 2420 | 24201600300001 | |
160 | 4 | 40 | 52 | 65 | 48 | 2420 | 24201600400001 | |
160 | 5 | 40 | 52 | 65 | 48 | 2420 | 24201600500001 | |
160 | 6 | 40 | 52 | 65 | 48 | 2420 | 24201600600001 | |
160 | 8 | 40 | 40 | 58 | 49,5 | 2420 | 24201600800001 | |
160 | 10 | 40 | 40 | 58 | 49,5 | 2420 | 24201601000001 |
